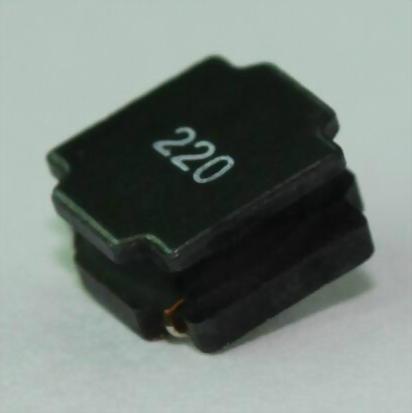

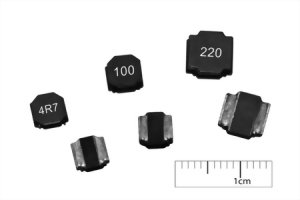

密封電源扼流圈EH系列
‧ Low profile.
‧ Various footprint in difference sizes for board designs.
‧ Magnetic shielded drum core construction with minimal power loss.
‧ Excellent solderability and high heat resistance.
‧ Low EMI and high current rating.
Features
‧ Low profile.
‧ Various footprint in difference sizes for board designs.
‧ Magnetic shielded drum core construction with minimal power loss.
‧ Excellent solderability and high heat resistance.
‧ Low EMI and high current rating.
|
Photo |
SIZE |
Series |
Inductance (uH) |
DCR(Ω, ±30%.) |
Irms(A, Max.) |
Isat(A, Max.) |
||
|
L |
W |
H |
(range) |
(range) |
(range) |
(range) |
||
|
2.5 |
2.0 |
1.0 |
0.24-22.0 |
0.032-1.190 |
4.00-0.35 |
6.70-0.40 |
|
|
2.5 |
2.0 |
1.2 |
0.24-22.0 |
0.023-0.785 |
4.05-0.40 |
7.00-0.50 |
|
 |
3.0 |
3.0 |
1.0 |
1.2-47.0 |
0.065-1.950 |
1.48-0.20 |
1.70-0.22 |
|
|
3.0 |
3.0 |
1.2 |
1.0-100.0 |
0.050-2.970 |
1.90-0.15 |
2.20-0.21 |
|
|
3.0 |
3.0 |
1.5 |
1.0-100.0 |
0.018-2.920 |
2.10-0.25 |
2.10-0.23 |
|
|
4.0 |
4.0 |
1.0 |
1.0-47.0 |
0.070-1.810 |
2.2-0.30 |
2.20-0.25 |
|
|
4.0 |
4.0 |
1.2 |
0.5-68.0 |
0.030-1.500 |
3.15-0.28 |
3.15-0.30 |
|
|
4.0 |
4.0 |
1.8 |
1.0-220.0 |
0.028-3.690 |
2.00-0.20 |
3.80-0.28 |
|
|
4.0 |
4.0 |
2.0 |
1.0-100.0 |
0.0384-1.755MAX |
2.15-0.31 |
4.85-0.52 |
|
|
4.0 |
4.0 |
2.6 |
1.0-68.0 |
0.0450-1.300MAX |
3.00-0.70 |
3.30-0.80 |
|
|
4.0 |
4.0 |
3.0 |
1.0-220.0 |
0.0325-3.500MAX |
4.00-0.25 |
6.00-0.33 |
|
|
5.0 |
5.0 |
1.2 |
1.0-22.0 |
0.0979-0.694MAX |
2.50-0.80 |
3.00-0.80 |
|
|
5.0 |
5.0 |
2.0 |
1.0-220.0 |
0.021-2.200 |
3.60-0.30 |
4.00-0.28 |
||
|
5.0 |
5.0 |
4.0 |
1.0-220.0 |
0.014-1.800 |
4.70-0.38 |
7.35-0.40 |
|
|
6.0 |
6.0 |
1.2 |
2.5-100.0 |
0.090-1.670 |
1.80-0.32 |
2.10-0.35 |
|
|
6.0 |
6.0 |
2.0 |
1.0-100.0 |
0.022-1.100 |
3.9-0.46 |
4.27-0.50 |
|
|
6.0 |
6.0 |
2.8 |
1.0-330.0 |
0.013-1.846 |
4.68-0.24 |
6.84-0.27 |
|
|
6.0 |
6.0 |
4.5 |
1.0-1000.0 |
0.012-5.200 |
5.50-0.18 |
10.50-0.24 |
|
|
8.0 |
8.0 |
4.0 |
0.9-820.0 |
0.007-2.800 |
7.24-0.34 |
12.42-0.36 |
|
Applications
‧ DC/DC converters
‧ Computers and PDAs
‧ Mobile phones
‧ PCMCIA cards
‧ GPS systems
‧ Digital cameras and DVD players
